garbar

Async Status Bar

A Tokio-powered status bar with modular widgets and Cairo/Pango rendering. garbar displays system information, workspaces, and more with a clean, customizable interface. Integrates seamlessly with gar or runs standalone.

View on GitHub Install

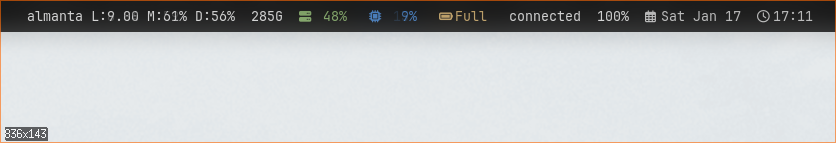

garbar status bar screenshot - default theme

garbar status bar screenshot - modules view

garbar status bar screenshot - custom config

Features

Async module architecture with Tokio runtime
Cairo/Pango vector rendering for crisp text
Battery, CPU, memory monitoring widgets
Workspace indicator synced with gar/i3/sway
Active window title display via EWMH
System tray with XEMBED and SNI D-Bus support
Per-monitor bars on multi-monitor setups
Quick settings integration with gartray
Custom script modules with click/scroll handlers
TOML or Lua configuration (via gar integration)
IPC control via garbarctl
Gradient backgrounds and styling
Click and scroll event handlers per module
Hot-reload config via SIGHUP or garbarctl

Quick Start Guide

Get garbar running with gar or as a standalone status bar.

1. Installation

Install garbar using the unified installer or build from source:

terminal

$ curl -fsSL https://gar.musicsian.com/install.sh | bash -s -- --component=garbar # Install via script

$ cd ~/.local/src/gardesk/garbar && cargo build --release # Or build from source

2. Running garbar

garbar can run standalone or be auto-started by gar:

terminal

$ garbar # Start garbar

$ garbar -f # Run in foreground (no daemonize)

$ garbar -c /path/to/config.toml # Custom config path

$ garbar -v # Verbose logging

3. Integration with gar

Add a gar.bar table to your gar config to auto-start garbar:

~/.config/gar/init.lua

-- Enable garbar (gar will spawn it automatically)
gar.bar = {
    height = 32,
    position = "top",
    background = "#1a1a1a",
    foreground = "#ffffff",
    modules_left = {"workspaces", "window_title"},
    modules_right = {"cpu", "memory", "battery", "datetime"},
}

4. Standalone Configuration

Without gar integration, configure garbar at ~/.config/garbar/config.toml:

terminal

$ mkdir -p ~/.config/garbar # Create config directory

$ $EDITOR ~/.config/garbar/config.toml # Edit configuration

5. Control with garbarctl

Control the running daemon with garbarctl:

terminal

$ garbarctl status # Show bar status

$ garbarctl reload # Reload configuration

$ garbarctl toggle # Toggle visibility

$ garbarctl update cpu # Force update a module

6. Configuration Priority

garbar checks configuration in this order:

~/.config/gar/init.lua — Reads gar.bar table (gar integration)
~/.config/garbar/config.toml — Standalone TOML config
Built-in defaults

Configuration Reference

garbar supports two configuration formats: Lua (via gar integration) or standalone TOML.

Minimal Configuration

~/.config/garbar/config.toml

height = 32
position = "top"
background = "#1a1a1a"
foreground = "#ffffff"

modules_left = ["workspaces", "window_title"]
modules_center = []
modules_right = ["cpu", "memory", "battery", "datetime"]

Full Configuration Example

~/.config/garbar/config.toml

# ═══════════════════════════════════════════
# Bar Settings
# ═══════════════════════════════════════════

height = 32
position = "top"      # "top" or "bottom"
opacity = 1.0         # 0.0 to 1.0

# Colors
background = "#1a1a1a"
foreground = "#ffffff"

# Fonts (Pango format with fallback chain)
fonts = [
    "JetBrainsMono Nerd Font:size=10",
    "DejaVu Sans Mono:size=10",
    "monospace:size=10"
]

# ═══════════════════════════════════════════
# Spacing
# ═══════════════════════════════════════════

[margin]
top = 0.0
right = 0.0
bottom = 0.0
left = 0.0

[padding]
left = 8.0
right = 16.0
top = 0.0
bottom = 0.0

# ═══════════════════════════════════════════
# Border & Shadow
# ═══════════════════════════════════════════

[border]
width = 0.0
color = ""
radius = 0.0

[shadow]
enabled = false
color = "#00000080"
blur = 8.0
offset = { x = 0.0, y = 2.0 }

# ═══════════════════════════════════════════
# Animations
# ═══════════════════════════════════════════

[animations]
enabled = true
duration = 150        # milliseconds
easing = "ease-out-cubic"

# ═══════════════════════════════════════════
# Separator
# ═══════════════════════════════════════════

[separator]
text = "│"
foreground = "#555555"
[separator.padding]
left = 8.0
right = 8.0

# ═══════════════════════════════════════════
# Module Layout
# ═══════════════════════════════════════════

modules_left = ["workspaces", "window_title"]
modules_center = []
modules_right = ["cpu", "memory", "battery", "tray", "datetime"]

# ═══════════════════════════════════════════
# Module Configuration
# ═══════════════════════════════════════════

[modules.workspaces]
show_empty = false
show_urgent = true
pin_workspaces = false

[modules.workspaces.focused]
background = "transparent"
foreground = "#ffffff"
[modules.workspaces.focused.underline]
width = 2.0
color = "#33ccff"

[modules.workspaces.unfocused]
background = "transparent"
foreground = "#666666"

[modules.workspaces.urgent]
background = "#ff5555"
foreground = "#ffffff"

[modules.window_title]
max_length = 50
ellipsis = "…"
empty_text = "Desktop"
show_icon = true
icon_spacing = 8.0

[modules.cpu]
format = " {usage}%"
interval = 2
warning_threshold = 70
critical_threshold = 90
warning_foreground = "#ffaa00"
critical_foreground = "#ff5555"

[modules.memory]
format = " {percent}%"
format_alt = " {used}/{total}"
interval = 5
warning_threshold = 80
critical_threshold = 95
warning_foreground = "#ffaa00"
critical_foreground = "#ff5555"

[modules.battery]
device = "auto"
format_charging = " {percent}%"
format_discharging = "{icon} {percent}%"
format_full = " Full"
low_threshold = 15
low_foreground = "#ff5555"
[[modules.battery.icons]]
threshold = 10
icon = ""
[[modules.battery.icons]]
threshold = 25
icon = ""
[[modules.battery.icons]]
threshold = 50
icon = ""
[[modules.battery.icons]]
threshold = 75
icon = ""
[[modules.battery.icons]]
threshold = 100
icon = ""

[modules.datetime]
format = " %a %b %d   %H:%M"
format_alt = " %Y-%m-%d   %H:%M:%S"
interval = 1

[modules.tray]
icon_size = 18
spacing = 8.0
[modules.tray.padding]
left = 4.0
right = 4.0

# ═══════════════════════════════════════════
# Custom Script Modules
# ═══════════════════════════════════════════

[modules.script.weather]
exec = "curl -s 'wttr.in?format=1'"
interval = 300
format = " {output}"

[modules.script.music]
exec = "playerctl metadata --format '{{artist}} - {{title}}'"
interval = 1
click_left = "playerctl play-pause"
click_right = "playerctl next"
scroll_up = "playerctl volume 0.05+"
scroll_down = "playerctl volume 0.05-"

Bar Options Reference

Option	Type	Default	Description
height	u16	32	Bar height in pixels
position	string	top	"top" or "bottom"
opacity	f64	1.0	Bar opacity (0.0-1.0)
background	hex/gradient	#1a1a1a	Bar background (solid or gradient)
foreground	hex	#ffffff	Default text color
fonts	array	-	Pango font fallback chain
margin.*	f64	0.0	External margin (top/right/bottom/left)
padding.left	f64	8.0	Internal left padding
padding.right	f64	16.0	Internal right padding
border.width	f64	0.0	Border width in pixels
border.radius	f64	0.0	Corner radius
modules_left	array	["workspaces", ...]	Left-aligned modules
modules_center	array	[]	Center-aligned modules
modules_right	array	["cpu", ...]	Right-aligned modules

Overview

garbar is an async status bar built on Tokio with Cairo/Pango rendering. It features a modular architecture where each widget runs independently with its own update interval.

Architecture

Runtime: Tokio async runtime for non-blocking module updates
Rendering: Cairo for graphics, Pango for text layout
X11 Backend: x11rb with EWMH and XEMBED support
IPC: JSON over Unix domain sockets
Config: TOML standalone or Lua via gar integration

File Locations

~/.config/garbar/config.toml	Standalone configuration
~/.config/gar/init.lua	gar integration (gar.bar table)
$XDG_RUNTIME_DIR/garbar.sock	IPC socket

Available Modules

workspaces

window_title

cpu

memory

battery

datetime

tray

quick_settings

script

Modules

garbar uses a modular architecture. Each module runs independently with its own update interval and can handle click/scroll events.

Module Layout

modules_left = ["workspaces", "window_title"]
modules_center = []
modules_right = ["cpu", "memory", "battery", "quick_settings", "tray", "datetime"]

Module Interactions

Module	Left-Click	Scroll
workspaces	Switch workspace	-
memory	Toggle format	-
datetime	Toggle format	-
script	Custom command	Custom command

Workspaces Module

Displays workspace indicators with visual state (focused, unfocused, urgent). Click to switch workspaces. Uses i3-compatible IPC for workspace info.

[modules.workspaces]
show_empty = false        # Show empty workspaces
show_urgent = true        # Highlight urgent workspaces
pin_workspaces = false    # Always show pinned list

# Focused workspace style
[modules.workspaces.focused]
background = "transparent"
foreground = "#ffffff"
[modules.workspaces.focused.underline]
width = 2.0
color = "#33ccff"

# Unfocused workspace style
[modules.workspaces.unfocused]
background = "transparent"
foreground = "#666666"

# Urgent workspace style (flashing windows)
[modules.workspaces.urgent]
background = "#ff5555"
foreground = "#ffffff"

IPC Socket Paths

The module checks these sockets in order:

$I3SOCK environment variable
$SWAYSOCK environment variable (sway)
$XDG_RUNTIME_DIR/gar-i3.sock
/tmp/gar-i3.sock

Window Title Module

Displays the title of the currently focused window via X11 _NET_ACTIVE_WINDOW property.

[modules.window_title]
max_length = 50           # Max characters before truncation
ellipsis = "…"            # Truncation indicator
empty_text = "Desktop"    # Text when no window focused
show_icon = true          # Show window icon (if available)
icon_spacing = 8.0        # Space between icon and text

Update interval: 50ms for snappy focus tracking

CPU Module

Displays CPU usage percentage with color thresholds for warnings. Reads from /proc/stat with exponential smoothing.

[modules.cpu]
format = " {usage}%"           # Display format
interval = 2                    # Update interval (seconds)
warning_threshold = 70          # % for warning color (orange)
critical_threshold = 90         # % for critical color (red)
warning_foreground = "#ffaa00"  # Warning color
critical_foreground = "#ff5555" # Critical color

Format Placeholders

{usage} — CPU usage percentage (0-100)

Color Logic

Critical (≥90%): #ff5555
Warning (≥70%): #ffaa00
Normal: #5294e2

Memory Module

Displays memory usage. Click to toggle between percentage and absolute values. Reads from /proc/meminfo.

[modules.memory]
format = " {percent}%"           # Primary format
format_alt = " {used}/{total}"   # Alt format (click to toggle)
interval = 5                      # Update interval (seconds)
warning_threshold = 80            # % for warning color
critical_threshold = 95           # % for critical color
warning_foreground = "#ffaa00"
critical_foreground = "#ff5555"

Format Placeholders

{percent} — Memory usage percentage
{used} — Used memory (auto-scaled: G/M/K)
{total} — Total memory
{available} — Available memory

Battery Module

Displays battery status with charging indicator and threshold-based icons. Auto-detects from /sys/class/power_supply.

[modules.battery]
device = "auto"                    # Auto-detect or specify "BAT0"
format_charging = " {percent}%"   # While charging
format_discharging = "{icon} {percent}%"
format_full = " Full"
low_threshold = 15                 # Low battery warning %
low_foreground = "#ff5555"         # Low battery color

# Threshold-based icons (matched in order)
[[modules.battery.icons]]
threshold = 10
icon = ""

[[modules.battery.icons]]
threshold = 25
icon = ""

[[modules.battery.icons]]
threshold = 50
icon = ""

[[modules.battery.icons]]
threshold = 75
icon = ""

[[modules.battery.icons]]
threshold = 100
icon = ""

Format Placeholders

{percent} — Battery percentage
{icon} — Threshold-based icon

Color Logic

Charging: #98c379
Low (≤15%): #ff5555
Normal: #e5c07b

Date/Time Module

Displays current date and time. Click to toggle between formats. Uses strftime syntax via chrono.

[modules.datetime]
format = " %a %b %d   %H:%M"      # Primary format
format_alt = " %Y-%m-%d   %H:%M:%S"  # Alt format (click)
interval = 1                        # Update interval (seconds)

Common Format Codes

Code	Output	Example
%H:%M	24-hour time	14:30
%I:%M %p	12-hour time	02:30 PM
%a	Day abbreviated	Mon
%A	Day full	Monday
%b %d	Month day	Jan 15
%Y-%m-%d	ISO date	2024-01-15
%S	Seconds	45

Script Module

Run custom shell commands and display output. Supports click/scroll handlers for interactive widgets. Commands run in background threads.

# Weather widget
[modules.script.weather]
exec = "curl -s 'wttr.in?format=1'"
interval = 300   # 5 minutes
format = " {output}"

# Music player controls
[modules.script.music]
exec = "playerctl metadata --format '{{artist}} - {{title}}'"
interval = 1
click_left = "playerctl play-pause"
click_right = "playerctl next"
scroll_up = "playerctl volume 0.05+"
scroll_down = "playerctl volume 0.05-"

# Volume control
[modules.script.volume]
exec = "pamixer --get-volume-human"
interval = 0     # Event-driven only (no polling)
click_left = "pavucontrol"
scroll_up = "pamixer -i 5"
scroll_down = "pamixer -d 5"

# VPN status
[modules.script.vpn]
exec = "nmcli -t -f TYPE,STATE connection show --active | grep -q vpn && echo '🔒' || echo '🔓'"
interval = 10

Script Options

Option	Type	Description
exec	string	Shell command to execute (required)
interval	u32	Update interval in seconds (0 = event-only)
format	string	Wrapper format (use `{output}`)
click_left	string	Command on left-click
click_middle	string	Command on middle-click
click_right	string	Command on right-click
scroll_up	string	Command on scroll up
scroll_down	string	Command on scroll down
tail	bool	Run command as long-lived process, read stdout continuously

  Note: Scripts run via sh -c "command". Output is stdout; empty on non-zero exit.

Common Workflows

Practical examples of using garbar with gar and other tools.

Auto-Start with gar

The simplest way to use garbar is via gar integration:

~/.config/gar/init.lua

-- garbar auto-starts when gar.bar is defined
gar.bar = {
    height = 32,
    position = "top",
    background = "#1a1a1a",
    modules_left = {"workspaces", "window_title"},
    modules_right = {"cpu", "memory", "battery", "tray", "datetime"},
}

Media Player Widget

Create an interactive media player widget with playerctl:

[modules.script.media]
exec = '''
if playerctl status 2>/dev/null | grep -q Playing; then
    echo " $(playerctl metadata --format '{{artist}} - {{title}}' | cut -c1-40)"
elif playerctl status 2>/dev/null | grep -q Paused; then
    echo " $(playerctl metadata --format '{{artist}} - {{title}}' | cut -c1-40)"
else
    echo ""
fi
'''
interval = 1
click_left = "playerctl play-pause"
click_right = "playerctl next"
scroll_up = "playerctl volume 0.05+"
scroll_down = "playerctl volume 0.05-"

System Monitor Scripts

# Disk usage warning
[modules.script.disk]
exec = "df -h / | awk 'NR==2 {print $5}'"
interval = 60
format = " {output}"

# Network status
[modules.script.network]
exec = "nmcli -t -f DEVICE,STATE device | grep -m1 connected | cut -d: -f1"
interval = 10
format = "󰤨 {output}"

# VPN indicator
[modules.script.vpn]
exec = "nmcli -t -f TYPE,STATE connection show --active | grep -q vpn && echo '󰖂' || echo '󰖃'"
interval = 10

# Unread mail count
[modules.script.mail]
exec = "notmuch count tag:unread"
interval = 60
format = " {output}"

Toggle Bar Visibility

Bind a key in gar to toggle the bar:

~/.config/gar/init.lua

gar.bind("mod+b", function()
    gar.exec("garbarctl toggle")
end)

Hot Reload

Reload configuration without restarting:

terminal

$ garbarctl reload # Reload config from disk

$ kill -SIGHUP $(pgrep garbar) # Or send SIGHUP signal

Floating Bar Style

Create a floating bar with margins and rounded corners:

height = 28
opacity = 0.9

[margin]
top = 8.0
right = 8.0
left = 8.0

[border]
radius = 8.0

[shadow]
enabled = true
blur = 12.0
color = "#00000060"
offset = { x = 0.0, y = 4.0 }

IPC Protocol

garbar exposes a Unix domain socket for control and status queries.

Socket Location

$ echo $XDG_RUNTIME_DIR/garbar.sock # Primary socket path

$ ls /tmp/garbar.sock # Fallback location

garbarctl Commands

Command	Description
show	Make bar visible
hide	Hide bar
toggle	Toggle visibility
reload	Reload configuration from disk
status	Query bar status (returns JSON)
update <module>	Force update a specific module
quit	Gracefully shut down daemon

JSON Protocol

Send JSON objects over the socket for scripting:

Request format

{"command": "show"}
{"command": "toggle"}
{"command": "update_module", "module": "cpu"}
{"command": "status"}

Response format

// Success
{"success": true, "error": null}

// Status response
{
  "success": true,
  "data": {
    "visible": true,
    "width": 1920,
    "height": 32,
    "modules_left": ["workspaces", "window_title"],
    "modules_center": [],
    "modules_right": ["cpu", "memory", "datetime"]
  }
}

// Error
{"success": false, "error": "Connection refused"}

Scripting Example

toggle-bar.sh

#!/bin/bash
# Toggle garbar visibility
SOCK="${XDG_RUNTIME_DIR:-/tmp}/garbar.sock"
echo '{"command": "toggle"}' | nc -U "$SOCK"

Troubleshooting

garbar won't start

Check for errors with debug logging:

$ RUST_LOG=debug garbar # Run with debug logging

$ RUST_LOG=garbar=trace garbar # Trace-level logging

Workspaces not showing

The module needs an i3-compatible IPC socket:

$ echo $I3SOCK $SWAYSOCK # Check socket env vars

$ ls -la $XDG_RUNTIME_DIR/*.sock # List available sockets

$ ls -la /tmp/gar*.sock # Check gar sockets

Ensure gar is running and exposes /tmp/gar-i3.sock or set I3SOCK.

Icons not displaying

Ensure a Nerd Font is installed and configured:

$ fc-list | grep -i nerd # Check for Nerd Fonts

$ fc-list | grep -i "JetBrains" # Check for JetBrainsMono

Install with: sudo pacman -S ttf-jetbrains-mono-nerd (Arch) or download from nerdfonts.com.

Config not loading

Verify config file syntax:

$ cat ~/.config/garbar/config.toml | tomlq . # Validate TOML (requires tomlq)

$ garbarctl reload # Reload after fixing

Check for missing quotes, unbalanced brackets, or invalid values.

Battery module not showing

Check power supply detection:

$ ls /sys/class/power_supply/ # List power devices

$ cat /sys/class/power_supply/BAT0/type # Check device type

$ cat /sys/class/power_supply/BAT0/capacity # Check battery level

Set device = "BAT0" explicitly if auto-detection fails. Module hides if no battery found.

System tray icons missing

Only one app can own the system tray:

$ xprop -root | grep SYSTEM_TRAY # Check tray ownership

$ pgrep -a polybar # Check for other bars

Kill other status bars (polybar, i3bar, waybar) that may own the tray.

garbarctl: connection refused

Verify garbar is running:

$ pgrep -x garbar # Check if running

$ ls -la ${XDG_RUNTIME_DIR:-/tmp}/garbar.sock # Check socket exists

Start garbar first: garbar &

Script module not updating

Test the script manually:

$ sh -c 'your-script-here' # Test script execution

$ garbarctl update script:weather # Force refresh

Scripts must exit 0 and output to stdout. Empty output on non-zero exit.

High CPU usage

Check module intervals:

Increase interval for CPU-intensive scripts
Set interval = 0 for event-only updates
Avoid sub-second intervals for network requests

Releases

v0.2.0 Latest

RPM (x86_64) RPM (aarch64) Source (.tar.gz)

Back to home
